QuickBG

A bridge geometry and deck elevation tool to compute the top of slab elevation for bridge CAD production.

Given the horizontal control data, girder location,vertical profile and roadway cross section data, QuickBG computes the desired stationing, offsets, lengths, angles and top of slab elevation.

Highlights of QuickBG's Attractions:

• Time Saving: model input and result output can be completed in minutes, even for very complicated bridge geometry types, such as curved, skew, flare, kink, etc.

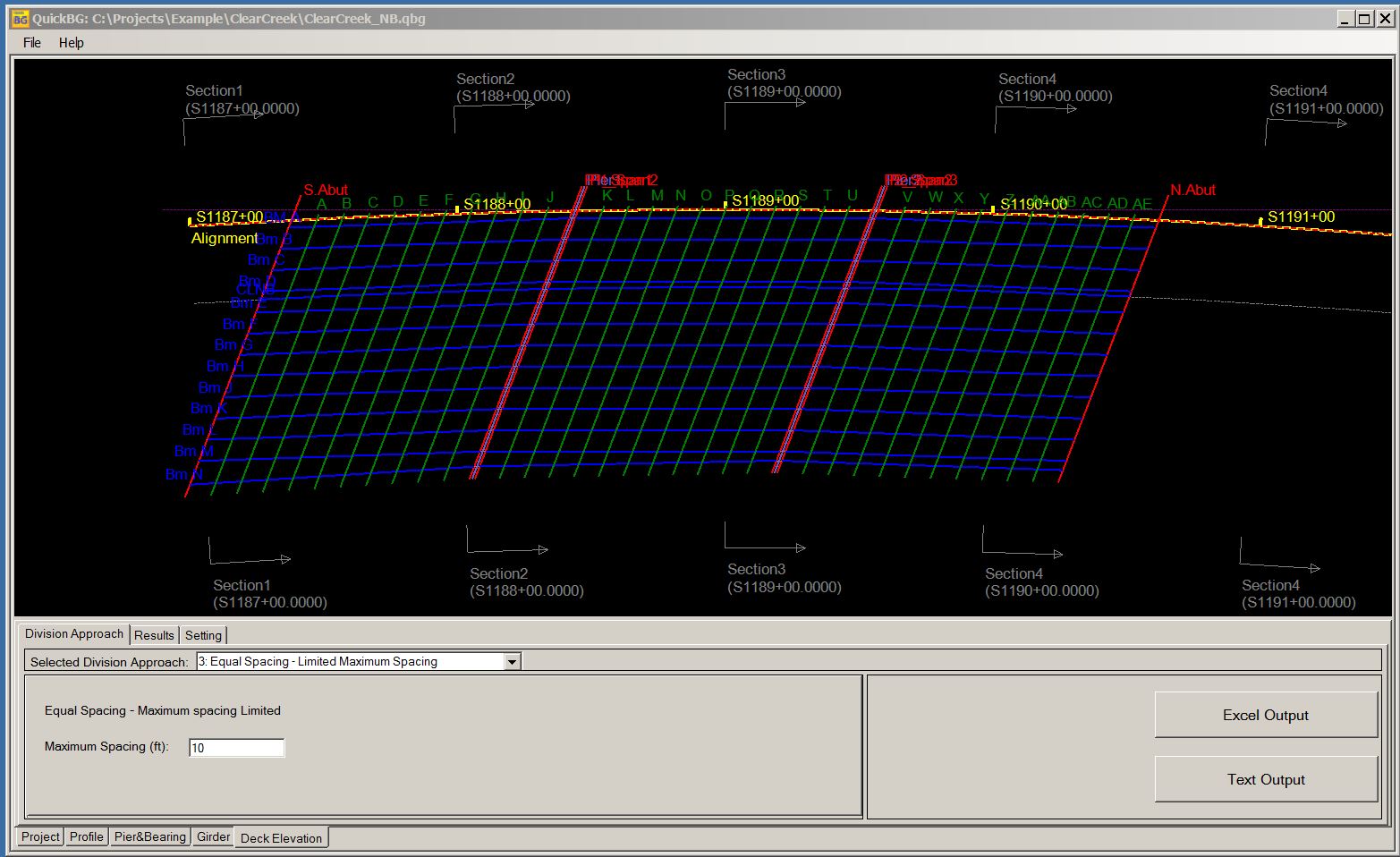

• User Friendly: the graphic interface shows geometry elements in real time with "What You See Is What You Get" effect as user inputs.

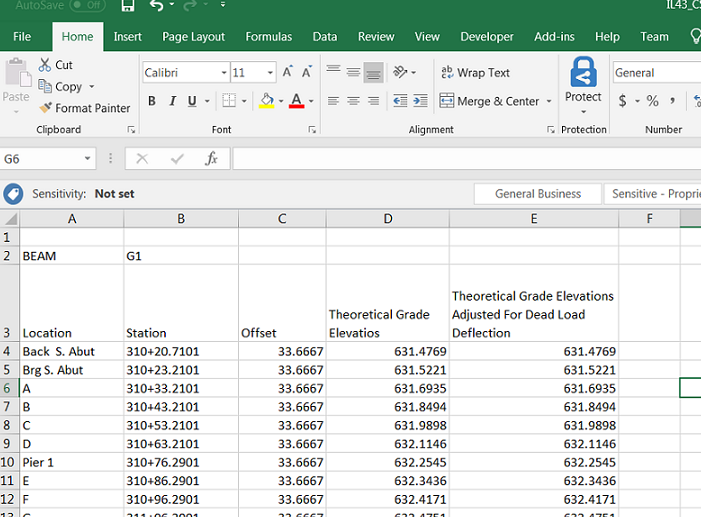

• Auto Production on DOT Requirement: Results are presented in the DOT required format and saved in Excel file that CAD sheets can directly link and refer to.

• Validated and Verified: It has been used in many bridge projects.
